All you need in one Testbench

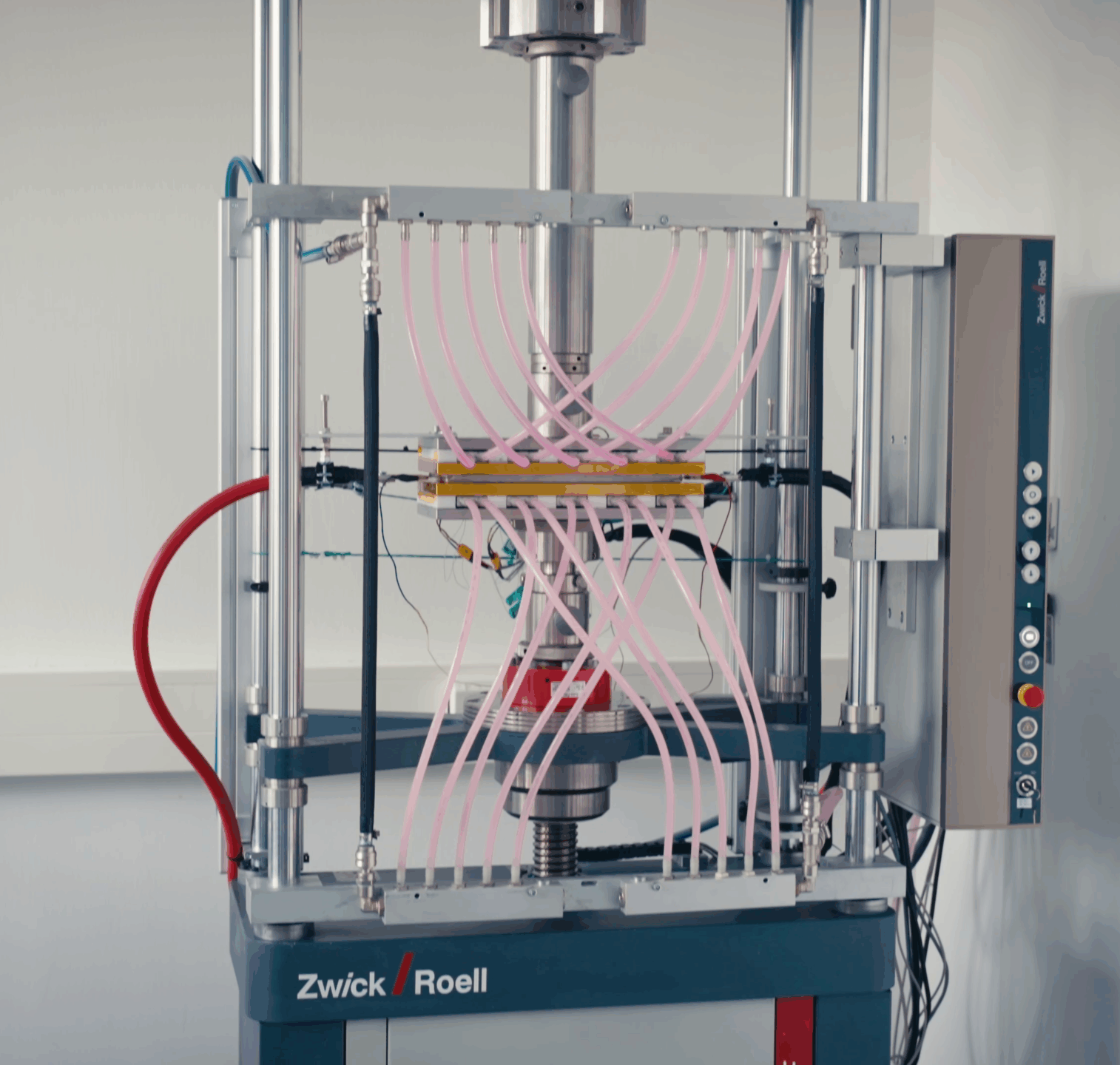

TMACS (Thermo-Mechanical Active Control System) combines the precision of a creep-test frame, with a solid state active cooling system and state of the art battery cycler. With this testbench is possible to perform all kind of non-abusive test: performance evaluation, breathing and swelling analysis, thermal expansion, piezoelectric effects, all tests can be executed with the complete control of the pressure and temperature.
thermal
The plates are thermally conditioned with a patented system.
Range: -15°C to 80 °C
Thermal peak power: 3.6 kW
mechanical
The press is designed to withstand loads for long time testing.
Travel resolution: 0.068 nm
Displacement accuracy: 0.5 µm
Force limit: 100kN
Data STORAGE
The data produced by each subsystem is logged to a storage device with a synchronised time base.
Battery cycler
A battery cycler is integrated in the system
Voltage range: ± 80V
Max current: ± 340A (expandible)
Full Automation for Unmatched Precision
The TMACS system delivers a fully automated solution for testing complex multiphysics protocols. Designed for high-performance environments, TMACS combines advanced automation with exceptional precision to streamline even the most demanding test scenarios. One of its standout capabilities is the rapid and seamless transition between load cases, minimizing downtime and ensuring consistent, high-quality data acquisition. This powerful integration of speed, accuracy, and intelligent control makes TMACS an ideal choice for cutting-edge research and development workflows.

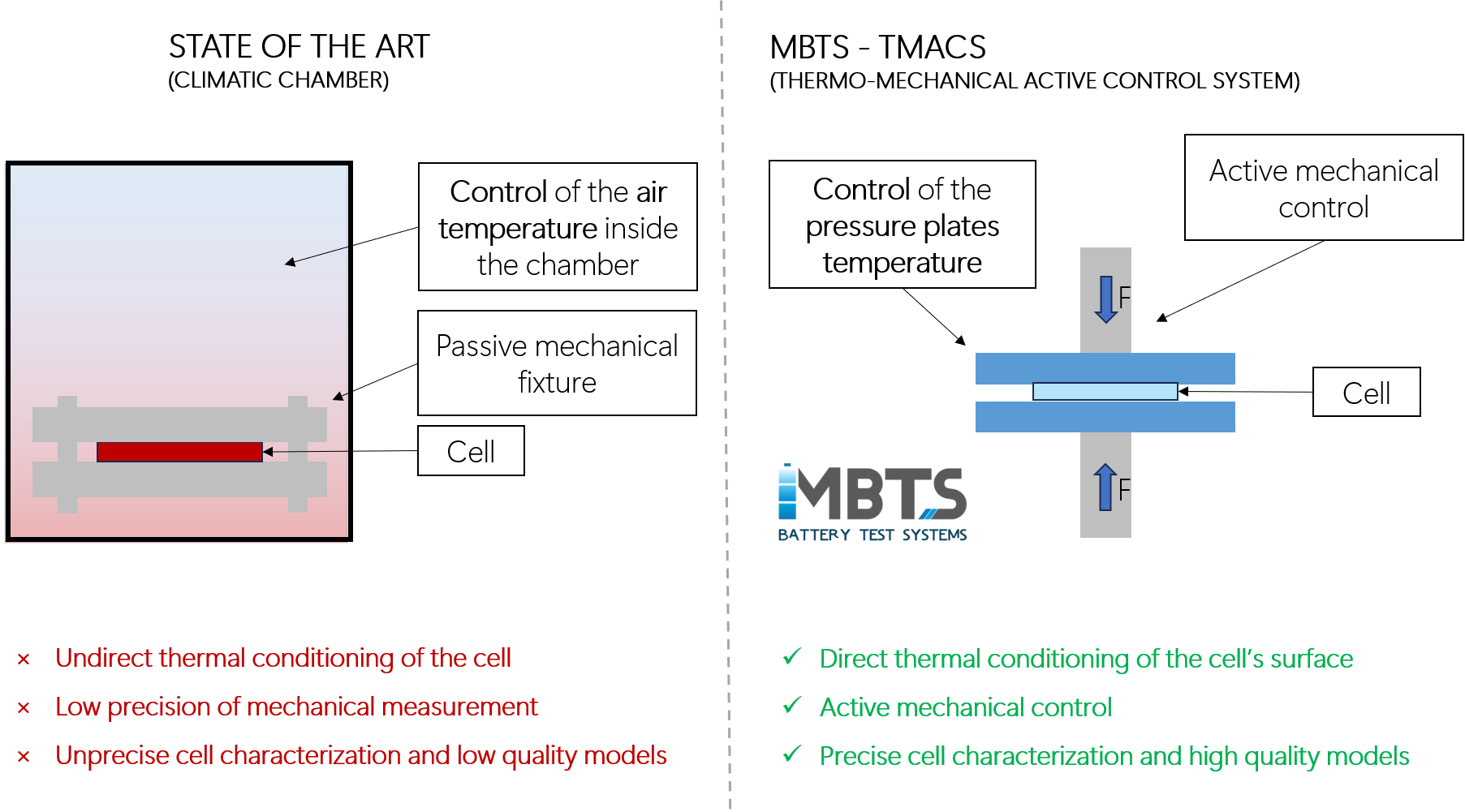

Comparison with Climatic Chambers
Traditional climate chambers struggle with high discharge current tests because excessive heat buildup often forces test interruptions when temperatures become unsafe. TMACS systems overcomes this challenge with superior thermal control and high-precision temperature management, maintaining cells at stable, controlled temperatures throughout testing. This advanced thermal power not only ensures safety but also significantly expands the range and duration of battery tests you can perform. With MBTS, push the limits of your battery testing—achieve more reliable data, explore higher current scenarios, and accelerate development with confidence and precision.
Testing Portfolio
An accurate control of the test pressure, temperature, and electrical operation allows for new and more accurate single cell testing. All of these while saving time with our fully automated systems.
